When it comes to securing electrical systems, cable glands (also known as cord grips or cable entry devices) are unsung heroes. These small but critical components ensure cables are safely routed, protected from environmental hazards, and anchored to withstand mechanical stress. In this comprehensive guide, we’ll explore the importance of cable glands, their key features like strain relief and ingress protection (IP) ratings, and how to choose the right types of thread for your application.

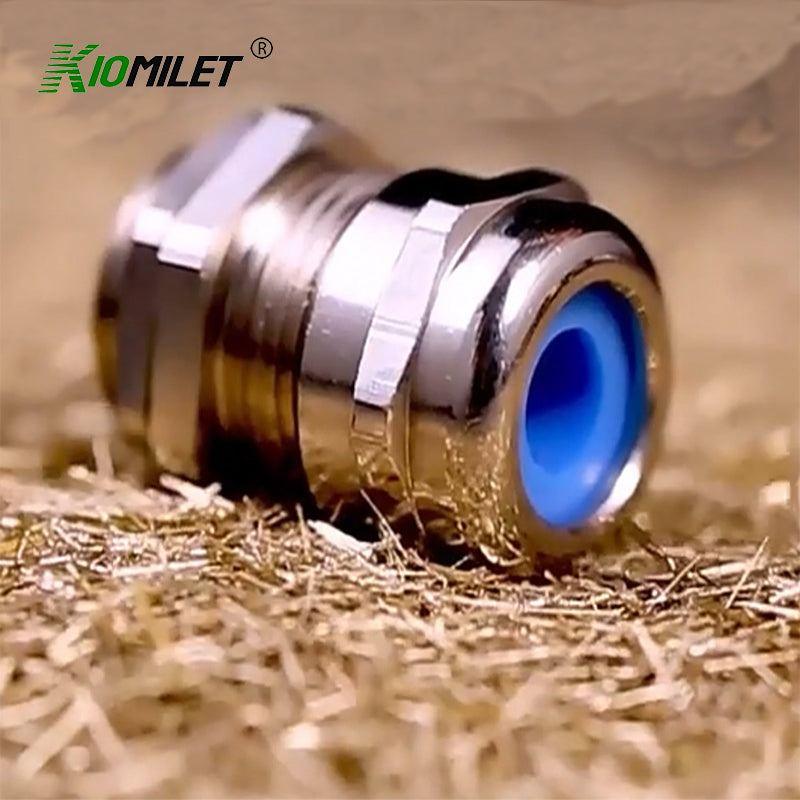

What Is a Cable Gland?

A cable gland is a device designed to attach and secure the end of an electrical cable to equipment. It provides strain relief to prevent tugging or twisting from damaging connections and ensures a tight seal where the cable enters a junction box, control panel, or machine. By combining mechanical stability with environmental protection, cable glands are vital for industrial, marine, and outdoor installations.

For more insights into industrial automation solutions, visit Hermitage Automation.

Key Features of High-Quality Cable Glands

  1. Ingress Protection (IP Ratings):
    Cable glands are rated by their ability to block dust, water, and chemicals. For example, an IP68-rated gland guarantees protection against prolonged submersion. This is critical for harsh environments like offshore rigs or wastewater plants.

  2. Strain Relief and Cord Grip:
    A robust cord grip mechanism prevents cables from being pulled loose due to vibration or accidental tugs. This strain relief preserves electrical integrity and reduces maintenance costs.

  3. Thread Types:
    Common types of thread include metric (M), PG (Panzergewinde), and NPT (National Pipe Taper). Matching the thread to your enclosure ensures a secure fit. For example, NPT threads are self-sealing and ideal for North American applications.

    Learn more about thread standards from Indupart.

  4. Material Durability:
    Cable glands are made from brass, stainless steel, or high-grade plastics. Stainless steel is preferred for corrosive environments, while nylon suits cost-sensitive projects.

Types of Cable Glands by Application

  • Industrial Cable Glands: Designed for heavy machinery, these prioritize ingress protection and resistance to oils or chemicals.

  • Marine-Grade Glands: Built to withstand saltwater corrosion and extreme humidity.

  • Explosion-Proof Glands: Certified for hazardous areas where sparks could ignite gases or dust.

Check out JJSEA for marine-grade solutions.

How to Choose the Right Cable Gland

  1. Cable Diameter: Measure the outer diameter of your cable to ensure a snug fit.

  2. Environmental Needs: Match IP ratings to conditions (e.g., IP67 for temporary water exposure).

  3. Thread Compatibility: Confirm whether your enclosure uses metric, PG, or NPT threads.

  4. Material: Opt for stainless steel in corrosive settings or plastic for lightweight applications.

For a step-by-step installation guide, explore resources from Frontier Electric.

Installation Best Practices

  1. Strip the cable sheath to expose conductors.

  2. Slide the gland onto the cable before connecting terminals.

  3. Tighten the cord grip evenly to avoid over-compression.

  4. Use sealants on threads for enhanced ingress protection.

Pro Tip: Always test the seal by submerging the gland (if IP-rated) after installation.

Common Mistakes to Avoid

  • Ignoring IP Ratings: Using indoor-rated glands outdoors leads to premature failure.

  • Mismatched Threads: Forcing incompatible threads damages enclosures.

  • Over-Tightening: This can crush cables or crack plastic glands.

For expert troubleshooting, refer to Edward Betts’ technical guides.

Why Cable Glands Matter for Safety

A poorly chosen cable gland risks electrical faults, fire hazards, and equipment downtime. By investing in quality cable entry systems, you safeguard both personnel and infrastructure. Case studies from Ars Technica highlight how proper strain relief prevents industrial accidents.

Conclusion

From strain relief to ingress protection, cable glands are indispensable for reliable electrical systems. Whether you’re securing a data center or a submarine cable, understanding types of thread, materials, and IP ratings ensures optimal performance.

For SEO-friendly content strategies, explore SEMrush’s Content Template.

By prioritizing durable, well-sealed cable glands, you’re not just protecting wires—you’re future-proofing your entire operation.
